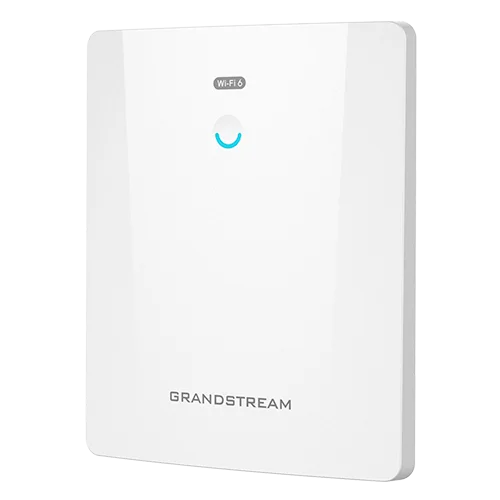

GWN7664ELR – Grandstream Wi-Fi 6 Long-Range Access Point

Attribute:

SKU : GWN7664ELR

Categories : IP-PBX GrandStream

Share

The GWN7664ELR is a high-performance long-range Wi-Fi 6 access point designed for medium-to-large businesses and enterprises that need extensive coverage in outdoor spaces.

Key Features:

  • Wireless Performance: Offers up to 6 Gbps aggregate wireless throughput, with a 2.5 Gbps RJ45 port and a 2.5 Gbps SFP port.
  • Protection: Features IP67-level weatherproof certification for outdoor durability.
  • Technology: Supports dual-band 4x4:4 MU-MIMO with OFDMA technology and a sophisticated antenna design.
  • Coverage: Provides an expanded coverage range of up to 300 meters.
  • Client Capacity: Supports 512 concurrent Wi-Fi client devices.
  • Advanced Features: Includes advanced QoS to ensure real-time performance of low-latency applications, mesh networks, and captive portals.
  • Security: Features anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate, and a random default password per device.
  • Power Management: Self-power adaptation upon auto-detection of PoE or PoE+.
  • Antennas: Offers the flexibility of 8 internal antennas.
  • Network Management: Has an embedded controller to manage up to 50 local GWN APs, and is also supported by the GDMS Networking and GWN Manager platforms.

FeatureGWN7664ELR
Wi-Fi StandardsIEEE 802.11 b/g/n/ac/ax
Antennas8 individual internal antennas
- 2.4GHz, gain 5.5dBi
- 5GHz, gain 6.5dBi
Wi-Fi Data Rates5G:
- IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
- IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
- IEEE 802.11n: 6.5Mbps to 600 Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:
- IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary
Frequency Bands2.4GHz radio: 2400 - 2483.5 MHz
5GHz radio: 5150-5850 MHz
*Not all frequency bands can be used in all regions.
Channel Bandwidth2.4G: 20 and 40 MHz
5G: 20, 40, 80 and 160 MHz
System SecurityWPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown
MU-MIMO4×4:4 2.4GHz
4×4:4 5GHz
Coverage RangeUp to 300 meters
*Coverage range can vary based on environment
Maximum TX Power5G: 23.5dBm
2.4G: 24.5dBm
*Maximum power varies by country, frequency band, and MCS rate
SSIDs32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients512
Network Interfaces1x 2.5G RJ45 Port and 1x 2.5G SFP Port
Auxiliary Ports1x Reset Button
MountingWall mount or pole mount, kits included (can be rotated and adjusted by 60°)
LEDs1 tri-color LEDs for device status, 1 single-color LED for SFP indication
Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
Network ManagementEmbedded controller manages up to 50 local GWN APs
GWN.Cloud for unlimited cloud management
GWN Manager for on-premise software management (up to 3,000 APs)
Power and Green Energy EfficiencyPoE 802.3at
Maximum Power Consumption: 24W
EnvironmentalOperation: -30°C to 60°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing
PhysicalUnit Dimension: 260mm(L)x310mm(W)x59mm(H)
Unit Weight: 1.445kg
Entire Package Dimension: 469mm x 377mm x 137mm
Entire Package Weight: 3.06kg
Package ContentGWN7664ELR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
Weatherproof GradeIP67-level weatherproof capability
ComplianceFCC, CE, RCM, IC
